Motor & Actuator Selection

With the 2-DOF coaxial concept selected, the next engineering challenge was identifying a motor that satisfies the dual requirement established in the post-interim review: impact resilience (BLDC architecture) and precise closed-loop position control (FOC with encoder feedback).

Field Oriented Control (FOC) Requirement

Standard BLDC motors used in drones and RC vehicles are optimised for high-RPM propeller driving. Their Electronic Speed Controllers (ESCs) employ trapezoidal commutation, which prioritises speed but produces significant torque ripple and reduced torque at low speeds. For a robotic joint that must deliver consistent, controllable torque across its entire speed range, including holding position at zero speed, Field Oriented Control (FOC) is required. FOC achieves this by performing real-time vector control of the motor's magnetic field, necessitating precise rotor position feedback via an encoder.

Iteration 1: ODrive V3.6 + 360KV Motor (Abandoned)

The initial motor controller platform comprised an ODrive V3.6 dual-axis FOC controller paired with a 360KV outrunner BLDC motor fitted with a hall-effect encoder. While the ODrive provided the required FOC capability, physical testing revealed three critical shortcomings:

These shortcomings collectively demonstrated that a discrete motor-controller-encoder assembly was unsuitable for the application. The search criteria were refined to specifically target integrated BLDC actuators with built-in FOC controllers, high-resolution encoders, and a standardised communication interface.

Iteration 2: Damiao DM-J4310-2EC (Selected)

The Damiao DM-J4310-2EC integrated BLDC actuator satisfied all refined selection criteria:

Torque Verification

To verify that the DM-J4310-2EC provides sufficient torque for the application, three component torque calculations were performed. The first was the static torque: the gravitational load of the arm assembly (training stick, padding, and mounting hardware) at the maximum moment arm length. The second was the acceleration torque: the torque required to achieve the target angular acceleration (90° in ≤ 0.25 s) given the arm's moment of inertia. The third was the aerodynamic drag torque: the resistive torque from air resistance on the training stick at peak angular velocity.

The sum of all three components, multiplied by a 1.5× safety factor, confirmed that the DM-J4310-2EC's output torque (after the 30:1 total gear reduction) exceeds the application requirement. The complete derivations, numerical values, and final safety margin are presented in Appendix 1: Torque Calculations.

CAN Bus Communication

All four Damiao motors communicate with the Teensy 4.0 microcontroller via a CAN 2.0B bus operating at 1 Mbps. The bus is configured in a parallel topology, with each motor's CAN_H and CAN_L terminals wired in parallel, with a single 120 Ω termination resistor bridging CAN_H and CAN_L.

Motor Address Map

CAN Transmission Strategy: Sparse Edge-Trigger

To minimise bus congestion on a shared 4-motor bus, the firmware employs a Sparse Edge-Trigger with 100 ms Keep-Alive strategy. Under this scheme, a CAN command frame is transmitted only when the target position changes by more than 0.01 rad from the previously commanded value, thereby eliminating redundant frames during static hold. If no edge-trigger fires for 100 ms, a periodic telemetry frame is sent to maintain bus presence and confirm motor responsiveness.

This strategy reduces average bus utilisation from approximately 80% (continuous polling at 200 Hz × 4 motors) to under 15% during typical sparring, providing headroom for burst traffic during rapid multi-motor strike sequences.

CAN Frame Structure: Position-Speed Command Mode

The Damiao DM-J4310-2EC motors operate in Position-Speed mode, where each 8-byte CAN command frame encodes a target position and a maximum velocity for the trajectory. The motor's internal controller handles trajectory interpolation; the host (Teensy) only sends the desired endpoint and speed constraint.

The motor responds with a feedback frame containing actual position, velocity, and current, which the Teensy parses and publishes as the 21-double /motor_feedback payload via micro-ROS.

Dual-Rail Power Architecture

The electrical system employs a dual-rail power architecture, separating the high-current motor bus from the logic-level compute bus.

24V Motor Bus

The motor bus is powered by a Mean Well LRS-200-24 (200W, 24V / 8.8A) switched-mode PSU. Power is distributed through a common terminal block to all four Damiao DM-J4310-2EC motors (connected in parallel, each rated for 24V nominal operation) and the Cytron MDDS10 height motor driver.

At peak demand, with four motors simultaneously executing a snap-back command, the instantaneous current draw can approach the PSU's rated capacity. The PSU's internal current-limiting circuit provides a hardware-level ceiling, but the firmware's dI/dt safety layer (see Multi-Layered Safety Architecture) ensures that current spikes are detected and mitigated before reaching this hardware limit.

Arm motor power subsystem: four Damiao DM-J4310-2EC motors on the 24V bus. Measured steady-state draw is ~8 W/motor average per strike cycle (N=43); peak 33W across all four motors simultaneously at 24V. Click to enlarge.

Isolated 12V Logic Rail

The NVIDIA Jetson Orin NX compute module and the Teensy 4.0 microcontroller are powered from a dedicated 12V supply, electrically isolated from the 24V motor bus. This isolation addresses a specific failure mode: during rapid height motor deceleration, the geared DC motor (driven by the Cytron MDDS10) injects regenerative back-EMF onto the 24V bus. When these transients exceed the PSU's overvoltage protection (OVP) threshold (approximately 28V), the supply trips and all devices on that rail lose power simultaneously.

On a single-rail architecture, this OVP trip would reboot the Teensy (losing encoder references and active safety state) and the Jetson (losing the ROS 2 graph and GUI session) during active sparring, an unacceptable failure mode for a system with exposed 3D-printed moving parts. The dual-rail isolation guarantees that motor bus disturbances cannot propagate to the compute and control subsystems. The full OVP failure analysis and the software ramp-down mitigation are documented under 5.2.3 Height Adjustment and System Troubleshooting Appendix §Defect 6: PSU OVP Trip.

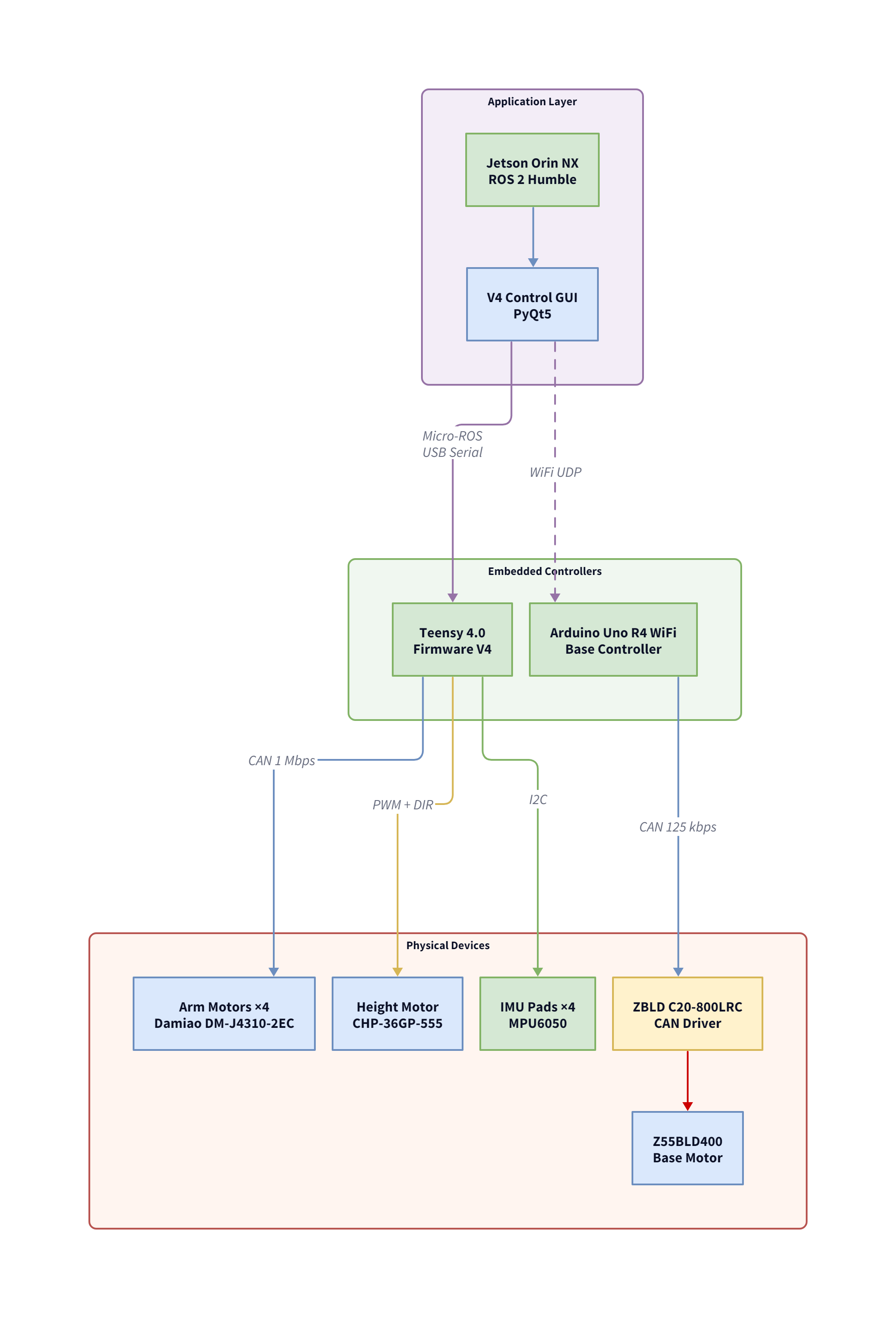

System data architecture: CAN bus (1 Mbps, 4x Damiao DM-J4310-2EC arm motors), I2C dual-bus (400 kHz, 4× MPU6050 IMUs, Wire and Wire1), micro-ROS USB bridge to Jetson Orin NX, and WiFi UDP link to Arduino Uno R4 WiFi base controller.
